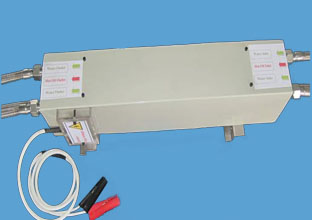

Home > ProductsThe 30 watts hot water thermoelectric power generator is good for waste heat recovery or geothermal heat.

The 30 watts thermoelectric generator runs with circulated 80 – 100 °C or less hot water which distributes the heat to each thermoelectric module (TEM) to generate electricity. The cooling of the generator is by using 30C or below cold water, which brings out the heat that passes through the modules effectively. The generator is good for waste heat recovery or geothermal heat.

The thermoelectric power generator consists of thermoelectric modules, hot water pipe for hot water circulating to bring the heat to each module, cold water pipe for water circulating to bring out the heat. The hot water flows from bottom of the generator to bring the heat to all the hot sides of the modules and out from the top cooled water outlet. The cold water flows from the cooling water inlet in the bottom, pass the modules cold side to bring out the heat that flows through the modules, and then out from the top cooling water outlet.

The generator is installed with 16 pcs 55 mm x 55 mm modules. It can generate over 30 watts if the hot water is over 90 °C and cold water is 30 °C with 3.5 liters/per minute flow rate.

Please down load the specification from here in PDF

TEG-LL30-12V

TEG-LL30-24V
